"Events" store depth-related information and annotations about directional wells.   This can include casing information, gas kicks or fluid losses, drilling or rig events, lithological data from cuttings, or sidetrack annotation.

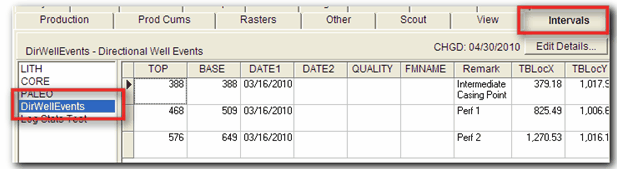

Events are stored in Petra’s Main Module in the Interval tab in the DirWellEvents table.  Here, the well events can be edited or deleted.

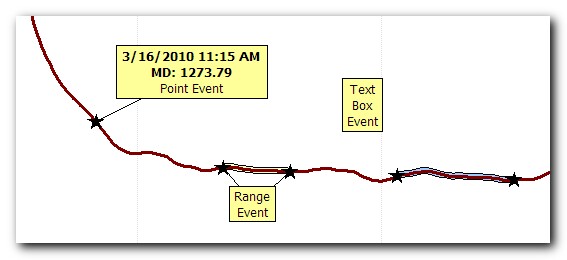

There are three different kinds of events:  Text boxes, point events, and range events.  Text boxes just contain an entry for text.  Point events save information about a single depth on a directional well.  Range events save data about a part of the directional well between a top and base.

Event Toolbar

The easiest way to create or modify To enable or disable the Event Toolbar, select Toolbars>Events from the menu bar at the top of the

- This button adds a new Text Box.

- This button opens a Point Event.

- This button adds a Range Event

- This button edits an existing event.

Directional Survey Drop down – Events can be stored against any of the well’s directional surveys. To view the events for a different survey, select it from the drop down box.

Editing Events

To move the location of the text box for an event, shift-click on the box and drag it to the new location.

To edit the settings for an event, shift-double-click on the box.

To change the depths of a point or range event, turn on the editing mode (Event Editing Mode button on the icon bar).

Click and drag the depth marker to change the depth of an event.

Alt-click to delete an event.

Click and drag on the text box to move.
