Plot Test Indicators

Top  Previous  Next

The Log Correlation module can perfed intervals along the wellbore.

To add perfs, select Wells>Plot Test Indicators

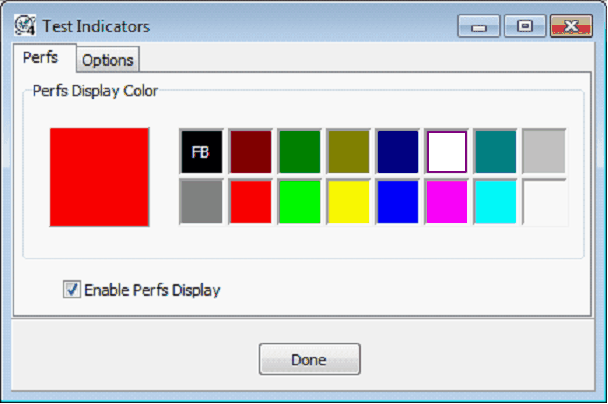

Perfs tab

Perf Display Color - This option sets the color for perfs on the Log Correlation Module.

Enable Perfs Display - This option enables perfs on the log correlation module.  Deselecting this option will remove perfs from the display.

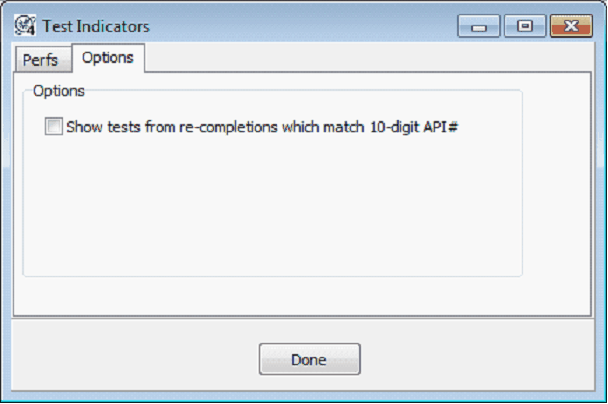

Options tab

Show tests from recompletions which match 10 digit API - By default, Petra treats recompletions as separate wells.  This option forces the Log Correlation Module to use all perfs from all recommpletions that match the first 10 digits of the API number.
