3D Visualization Module

Main module: Tools > 3D Visualization

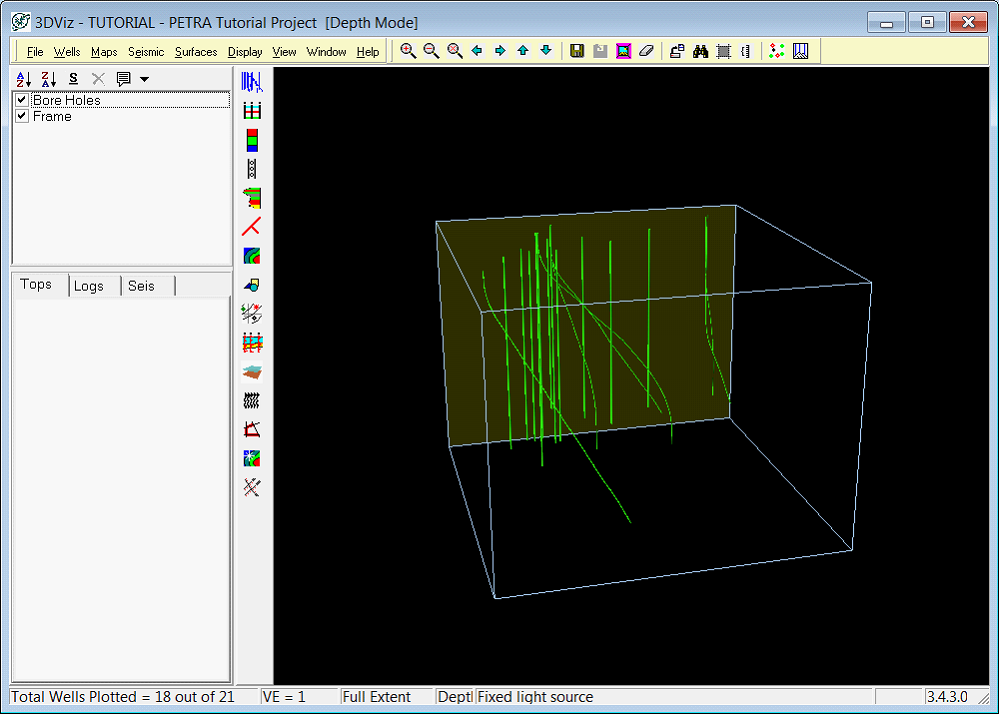

The 3D Visualization module (3DViz) is capable of displaying the following project data in a three dimensional objects in a cube (map X, map Y, and subsea depth):

Deviated and non deviated well bores
Formation Tops
Digital Logs
PETRA Grid Surfaces
Shows
Perfs
PETRA Overlay and Map images
PETRA Cross Section images

3DViz can only display sub sea depth data. 3DViz requires no special computer hardware and should run on most PC's.

To open the 3D Visualization module:

Main module: Tools > 3D Visualization
Click the 3D Visualization button on the Main module toolbar

Getting Started

Adding New Data

Set Vertical Exaggeration

Setting Default Well KB and TVD Values

Setting the Data Extent

Setting a Frame

Axes Options

Mouse actions

Task	Mouse Action
Rotate and move scene	Left click and drag
Zoom In	Right click and drag up
Zoom Out	Right click and drag down
Rotate Scene	Ctrl + Left click and drag
Pan Scene	Shift + Left click and drag, or Middle click and drag

Keyboard shortcuts

Task	Shortcut Key(s)
F2	Seismic Editing Mode
F5	Refresh Data From tables
F6	Restore Default View
Ctrl +	X Axis Options
Ctrl + E	Extent Options
Ctrl + F	Frame Options
Ctrl +	O Display Options
Ctrl + C	Clear All
Ctrl + Alt + C	Clear Screen
Ctrl + D	Display All
Ctrl + L	Set Light Position
Ctrl + W	Set Data Limits to Full Extent
+	Zoom In
-	Zoom Out
Z	Zoom Off
W -	Show as wire frame
S -	Show as solid
