Formation Tops

Selecting and Displaying Tops

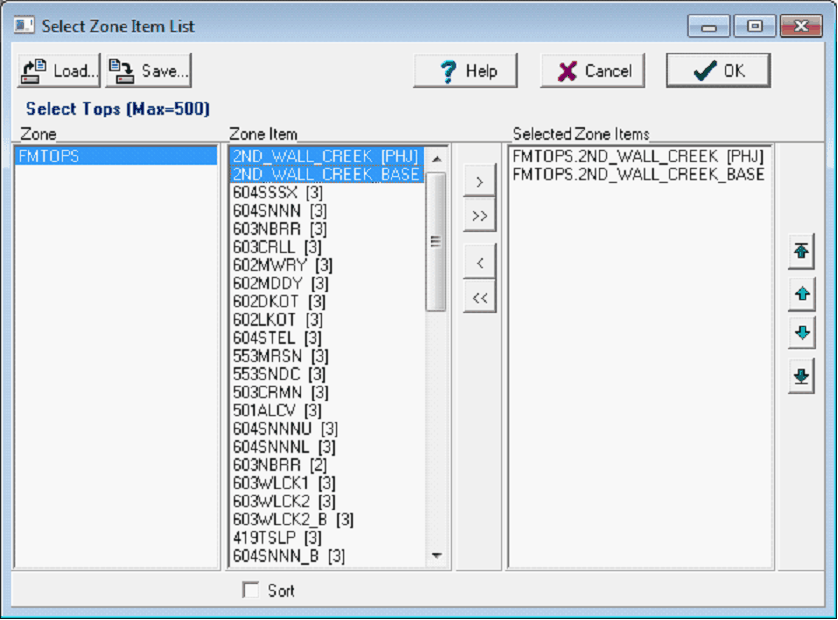

To display tops, select Tops>Select Tops from the menu bar at the top of the Raster Image Calibration tool.

Edit Mode

To edit formation tops, select the green "Start Top Editing" radio button on the Tops toolbar (highlighted in red).
