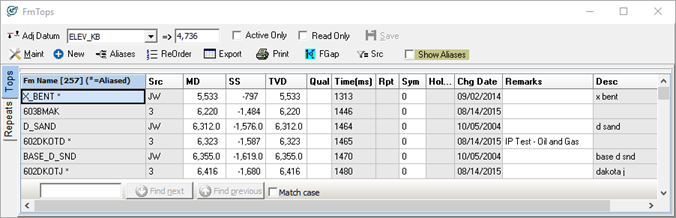

ADJ Datum
|
|
Sets active datum
|
|
Elevation
|
|
Drop down sets the active elevation for the well.
|
|
Active Only
|
Check box
|
Displays formation tops with active entries only. Useful for trimming list of tops in large multi-user projects.
|
|
Read Only
|
Check box
|
When selected, the formation tops cannot be changed. This includes manually typing in new values, picking tops in other modules, or being overwritten during import.
|
|
Maintenance
|
|
Opens Zone Maintenance Tool, which also creates and modifies formation tops.
|
|
New
|
|
Adds new formation top marker.
|
|
Define Top Aliases
|
|
Opens Define Formation Top Aliases Tool. This sets how Petra will replace missing tops with other "equivalent" tops in the database.
|
|
Reorder/Filter
|
|
Reorder opens the Order Z Data Items Tool. This sets the desired order that tops will appear on the Fm Tops tab and in Petra's modules.
·Green dot = Tops have been re-ordered
·Red dot = Tops have been both re-ordered and filtered.
|
|
Export
|
|
Exports the FmTops to MS Excel
|
|
Print
|
|
Prints the currently selected well's formation tops.
|
|
Fault Gap
|
|
Opens Fault Cut Tool. Petra can store fault cuts and throw to help in reconstructing the stratigraphic positioning of the lithology.
|
|
Filter Source
|
|
Opens Show Tops by Source Tool. Formation limits Formation Tops to only the source or sources selected. This can be useful for only displaying or modifying your tops in a large multi user environment.
|
