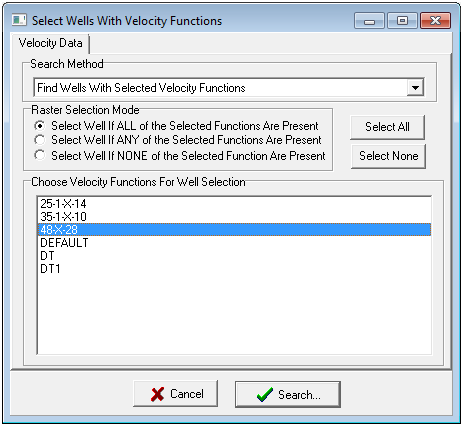

Select Wells With Velocity Function

The Select Wells With Velocity Function tool finds wells with loaded, active, or missing velocity functions

Search method

Find Wells With Selected Velocity Functions - This option selects wells based on the velocity functions selected on the "Choose Velocity Functions For Well Selection" list.  Note that this tool also uses the "Selection Mode" option, which can change how Petra searches for wells.

Find Wells With ANY Velocity Functions - This option selects wells that have a velocity function.

Find Wells With ANY Velocity Functions - This option selects wells that do not have a velocity function.

Find Wells With Selected Velocity Functions as Active - This option selects wells based on the ACTIVE velocity functions selected on the "Choose Velocity Functions For Well Selection" list.  Note that this tool also uses the "Selection Mode" option, which can change how Petra searches for wells.

Selection Mode ("Find Wells With Selected Velocity Functions" Search Method Only)

Select Well if ALL of the Selected Functions Are Present - This option returns only wells with ALL the velocity functions selected on the "Choose Velocity Functions for Well Selection" list.

Select Well if ANY of the Selected Functions Are Present - This option returns wells with at least of the the velocity functions selected on the "Choose Velocity Functions for Well Selection" list.

Select Well if NONE of the Selected Functions Are Present - This option returns wells that do not have any of the the velocity functions selected on the "Choose Velocity Functions for Well Selection" list.
