Volm tab

The Volm tab controls a few options on how the Map Module displays volumetric polygon information.

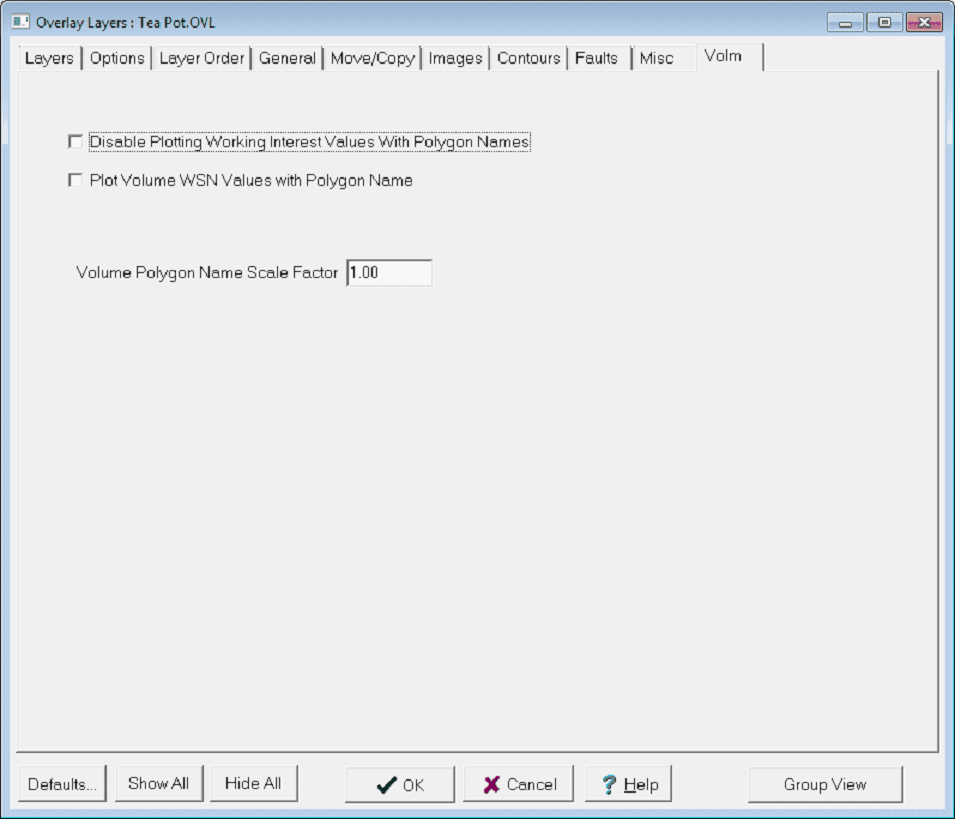

The Overlay Layers' Volm tab

Disable Plotting Working Interest Values With Polygon Names - This option prevents polygon working interests (set on the the Overlay Line Attributes tool's Volm tab) from plotting on the map.

Plot Volume WSN Values with Polygon Name - This option plots the WSN of the polygon's designated well inside the polygon.

Volume Polygon Name Scale Factor - This option sets the volume polygon label's scale factor.  This number is multiplied by the normal label height - setting this value to 0.5, for example, will decrease the size of the label by 50%.
