Main: Project > Direct Connect > IHS Logs > Digital...

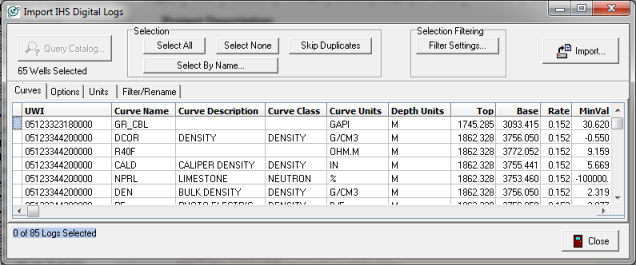

Subscribers can import digital logs directly from the IHS Direct Connect database. Petra compares the UWI/API numbers of the wells currently selected in the Main Module to IHSs digital curve database. Wells with matches are shown in the spreadsheet on the curves tab.
|
Query Catalog button
|
Queries IHS database for digital logs of selected wells. Results are displayed in grid on Curves tab.
|
|
Selection
|
Curve picking options:
Select All, Select None, Skip Duplicates, Select By Name
|
|
Selection Filtering
|
Enter and apply query filters: Top, Base and Class.
|
|
Curves tab
|
Displays query results in a grid format for selection. Select All (default)
|
|
Options tab
|
Imported curve management options.
|
|
Units
|
Select porosity and density conversion unit options.
|
|
Filter/Rename
|
Options for renaming and selecting translation file.
|
