Line and wells cross section selection

Map Module: CrossSection > (XS1 or XS2) Line and Wells…

Use the line and wells selection tool to define a “line” of the cross section and then select wells to project onto the line at a right angle.

To create a cross section using the line and well tool:

1. Start the line and wells selection: Map Module: CrossSection > (XS1 or XS2) Line and Wells
   the curser changes to a

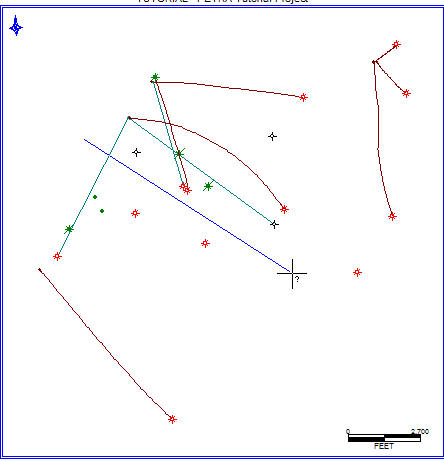

2. Draw a line, click at the desired start and end points of the line.

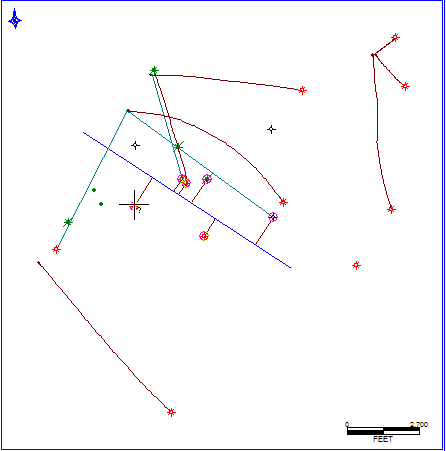

3. Click on individual wells to add at right angles along the line.

4. Right click the mouse to finish and generate cross section.
