DWM Map View



The Directional Well Module's Map View (DWM) and works like a simplified version of the Map Module.  It displays:

  • Wells
  • Well paths
  • Overlay data
  • Grids.

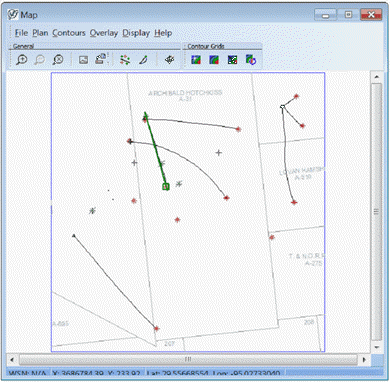

When you launch the Directional Well Module it opens with the Map window displayed.  The Map window cannot be closed, but it can be minimized. To reopen this window after minimizing it click the Map view button on the Directional Well Module's toolbar.

Map View Toolbar

These buttons zoom in, zoom out, and zoom to full extents

This button redraws the Map View using the data loaded in memory.

This button refreshes the Map View with the latest data in the project.  This can be useful for updating the map view to reflect changes made by other users or in another module.

This button opens the "Line and Wells" tool that selects wells for the Profile View tool.

This button opens the "Vertical Section" tool that displays a single well down it's vertical section plane.

This button opens the directional well planning tool

These buttons create grids, display contours, hide contours, or regrids the last set of countours.

Map View Menu

Plan

Launches Planning a Well wizard

Contours

Same options as the Map View Toolbar Contour buttons

Overlay

You can then select any saved overlay created in the Map Module.  To make edits to your overlays, use the overlay editing and management functionality in the Map Module.

Display

Display options include:

  • Enable / disable the Profile View outline
  • Show Secondary Surveys - Petra can store multiple directional surveys in the project database.  This is commonly used for proposed well plans and actual directional surveys.  When this option is enabled, both primary and secondary directional surveys are displayed on the map.

When this option is disabled, the Map View will only show "active" surveys.



Data Border Gap













Overlay > Open

.

Overlay files in the Map View tool are read-only, and cannot change here

Options

Display > Display Options

Display > Data Border Gap

The Data Border Gap establishes a blank space around the outline of the wells selected.
