3DViz Map Images

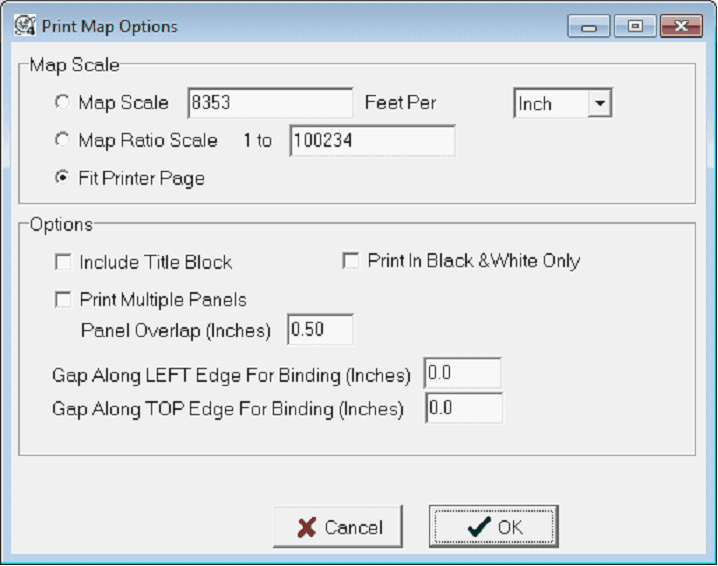

Map: File > Print To...> 3dViz Image

Map images generated by the Petra map module may be displayed at a specified elevation on the 3D display. The map images contain a well list which may be used with the image by checking the Load Wells from Image check box

Adding the Map Image:

To add the image file:

  • Select Maps > Load Petra Map on the menu bar at the top of the 3DViz Module.
  • Select the button on the Layer Toolbar.

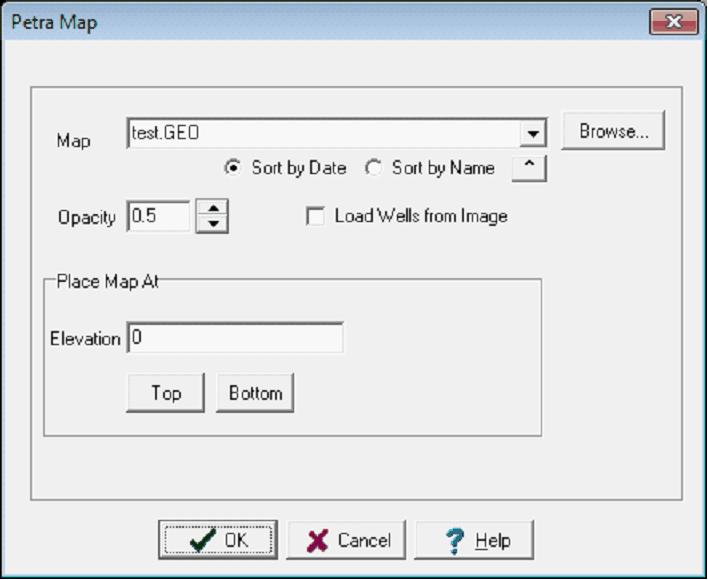

Map

This dropdown selects the *.GEO file created in the Map Module.  Select the "Browse" button to navigate to the file.

Opacity

This option sets the opacity of the Map Image.  Opacity can be set anywhere from transparent (0) to opaque (1).

Place Map At

This option sets the elevation of the image.  The "Top" button sets the entry equal to the very top of the frame, while the "Bottom" entry sets the map to the base of the frame.

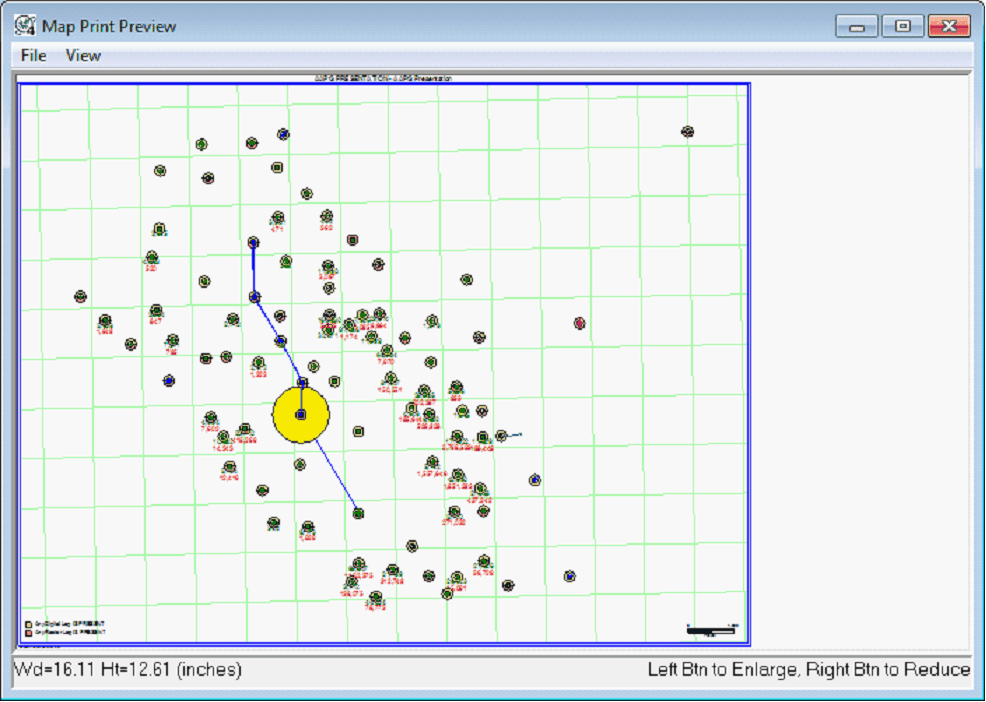

Creating a *.GEO File

The first step is to displaying a map on the 3DViz module is to create a:

  • *.JPG
  • *.GEO file.

 The JPG is a simple image file, while the *.GEO file sets the specific location of the image on the 3DViz Module.
