Highlight wells

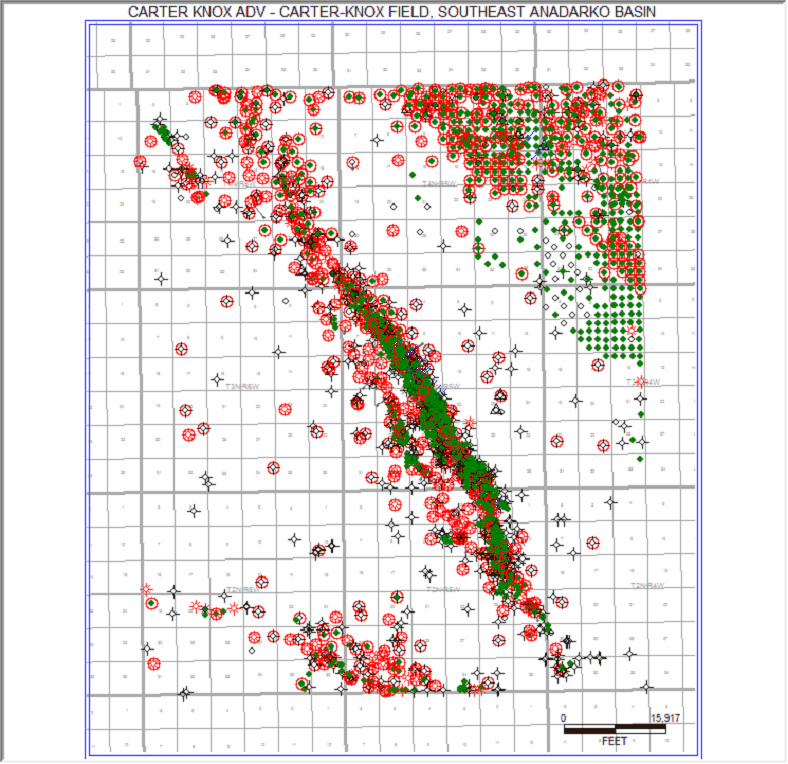

The Highlight Wells tools quickly distinguishes between different sets of wells with a colored circle.  This tool can distinguish wells based on data criteria, wells selected on the cross-section Module, or wells selected on the Cross Plot Module.

This tool is available under Wells>Highlight Wells>...

To change the well highlight color, change the "Well Map Highlight" option under Display>Colors.

Select Wells by Data Criteria - This selects wells using the Select Wells by Data Criteria tool.

Cross-Section Wells - This option highlights the wells currently selected in the Cross-Section Module

Cross-Plot Wells - This option highlights the wells currently selected in the Log Cross-Plot Module

None - This option disables the well highlight.

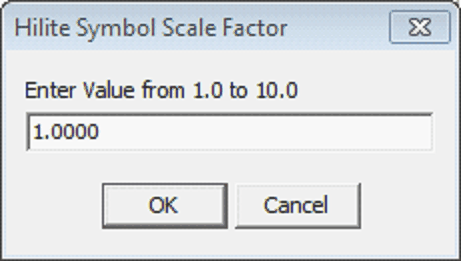

Set Symbol Well Factor - This option sets the diameter of the well highlight symbols scaled to the size of the well symbol  The default size of 1 is just a little bigger than the well symbols.
