Main: Project > Import > IHS 297 Well Data (Fixed or Comma)
297 files contain a comprehensive set of well information, including well header information, locations and IHS formation tops. These tops use formation codes that combine a numerical code for the formations age and an abbreviation of the formation name (see the appendix for more information). As a rule of thumb, older (and usually strati graphically lower) formations have larger numerical prefixes.
As an example, 602TMPL is above 604SNNN. Petra stores this information in an internal project database.
297 is one of the most common well data formats and is an updated version of the legacy PI 197 Well Export format. Generally, these files are exported from an IHS CD-ROM or database.
|

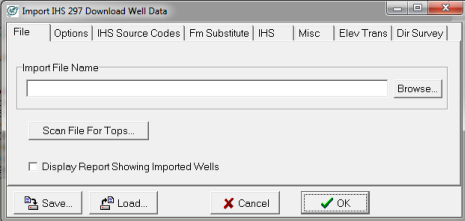

File
|
Sets the basic parameters on the data loaded into the project database.
|
|
Options
|
Sets the 297 importer Options tab sets the basic parameters on the data is loaded into the projects database.
|
|
IHS Source Codes
|
IHS formation tops are coded by their origin: 1 for driller tops, 2 for sample tops, 3 for log tops, and 4 for tops that have been modified by IHS. Petra will only load tops with selected source codes. By default, all check boxes are selected for import.
|
|
FM Substitute
|
Sets up a formation substitution file. For more information on formation substitution files, please see Formation Substitution Files under Common Import Options
|
|
IHS
|
Sets additional IHS options on how Petra loads the 297 file.
|
|
Misc
|
Sets the source code for perfs loaded from the 297 file. By default, the source code is blank.
|
|
Elev Trans
|
Sets up an elevation substitution file. For more information on formation translation files, please see Elevation Translation Codes under Common Import Options.
|
|
Dir Survey
|
Sets the location of directional surveys imported from the 297 file.
By default, Petra can load the directional surveys into Actual or Planned, though you can change the survey definitions with the Survey Def Maintenance button.
|
|
