The Profile View can send the current view to the 3D Visualization Module. The 3D Visualization Module is automatically adjusted to the same depth ranges and scales as your Profile View, and any gridded surfaces and tops posted in the Profile View will also be displayed in the 3D Visualization Module.
To change the 3dViz Module:

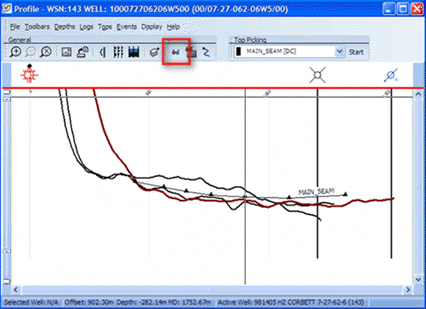

Use the extents and grids on the Profile View, select the  button on the toolbar at the top of the Profile View.
To reset the 3dViz Module to use the original extents and grids:
Select the  button on the toolbar at the top of the Profile View.

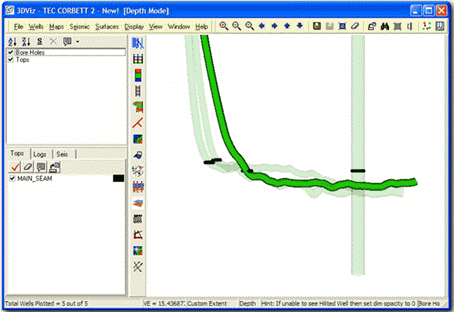

The Active well in the Profile View will be highlighted and the other displayed wells will be semi-transparent.
|
