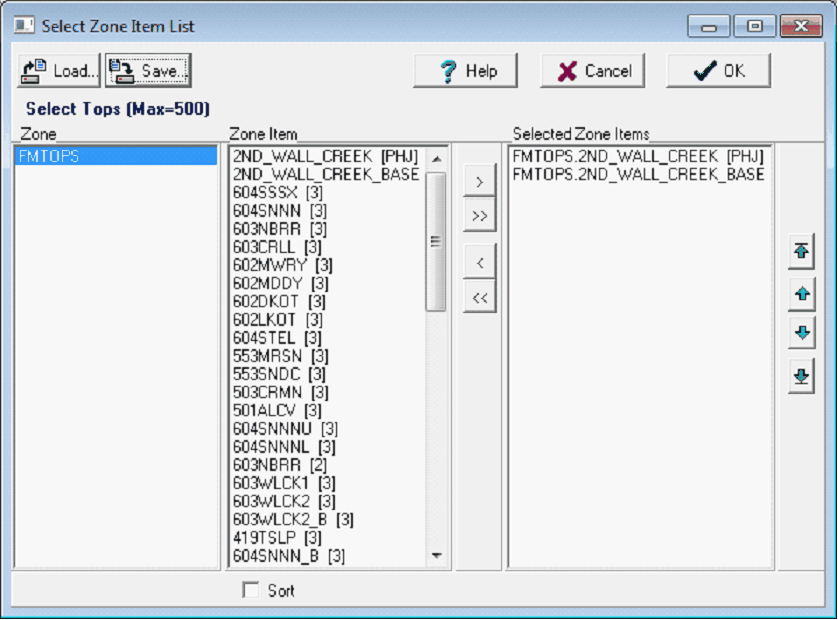

This tool selects one or more data items from a list of zones and data items in the project. This tool is often used to select formation tops or other zone data items for display
Zone
This list shows the available zones in the project. If a zone isn't showing up, make sure the "Show Listed Only" option on the Reorder Zone tool is off
Zone Item
This list shows every data item in the zone. If a data item isn't showing up, make sure the "Show Listed Only" option on the Display Order for Data Items tool is off.
Selected Zone Items List
This list shows the aliased data items. Use the < and > keys to add and subtract group names to the Selected Zone Items list, and the up and down arrow keys to change the order of an individual data item.
Loading and Saving a Selection List
A selection list can be saved to an external *.ZIL file. This can be useful for switching between two or more commonly used lists of data items or tops.
Load - Replaces the zone data items on the "Selected Zone Items" list with those from the *.ZIL file.
Save - Saves the zone data items on the "Selected Zone Items" list to an external *.ZIL file.
