Select wells by data

Main: Wells > Select... > Wells by Data Criteria
Map: Wells > Select... > Wells by Data Criteria

Petra provides a robust and efficient function for searching the database for specific well criteria. The search begins with the  currently displayed Well List. You can, however, click All Wells in the dialog box to search the entire well list. Saving the search results as a WSN List is an integral part of the search mechanism, as these well subsets can streamline your workflow when used in other modules.

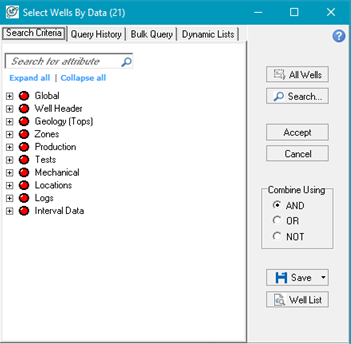

Search Criteria tab

clip0238

Available search criteria

Expandable tree and auto complete search field of all available well attributes.

Search...

Searches current well list for selected search criteria.

Accept

Accepts and loads wells from search results in the active module.

Combine Using

Combines multiple search criteria to create more sophisticated search lists.

  • AND - Requires all criteria to be satisfied in order to pass.

  • OR - Requires only one criteria to be satisfied in order to pass.

  • NOT - Requires that the well pass the first criteria, but fail any additional criteria.

Save

Saves query as WSN, UWI or Dynamic list to for reuse.

Well List

Opens Well list selection tool with well search results.

To create a single criteria  list:

  1. Open the Select Wells by Data dialog box.

  • Wells > Select... > Wells by Data Criteria... from individual modules
  • Keyboard shortcut: CTRL + S
  • DataCrriteria button Main Module toolbar

  1. Locate search criteria from the available category tree.

  • Type name of criteria item in the auto fill field to narrow list and select data item.
  • Click on a category to expand the list and locate data item.

  1. Double-click item or click Search to open applicable sub-menu.

  2. Select applicable filters and click OK.

  3. Click Save button and select type of list to save from drop down and click Save.

  4. Click Accept to close dialog and update well list.

To create a combined criteria well list:

  1. Open the Select Wells by Data dialog box.

  2. Select first search criteria, set applicable filters, and and click OK.

  3. Add additional requirements by selecting one of the following radio buttons:

  • AND
  • OR
  • NOT

  1. Select additional criteria, set applicable filters, and and click OK.

  2. Repeat steps 3 and 4 untill all requirements are met.

  3. Click Accept to close dialog and update well list.
