Test Indicators


Cross Section: Wells > Post Test Indicators

The Select Test Indicators to Plot window adds perfs, tests, shows, and other information along the well paths in the Cross-Section Module.

To open this tool:
  • Click the button on the Cross-Section Module's toolbar
  • Wells > Post Test Indicators

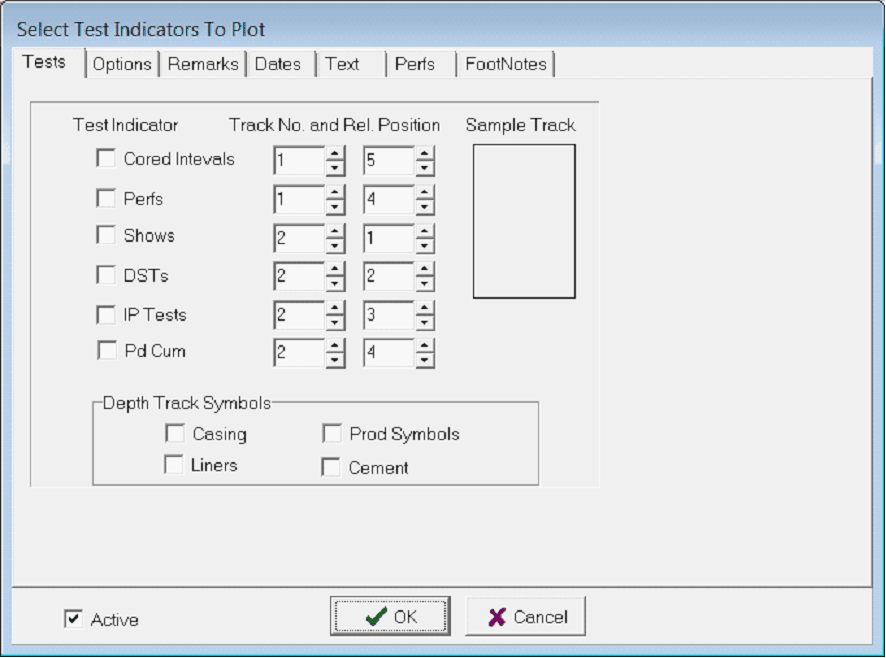

Tests tab

Select test indicators to add.

Options tab

Select test options

Remarks tab

Add remarks

Dates tab

Select test date range

Text tab

Sets text variables

IP Tests tab

Controls how IP tests are displayed on the cross section

DSTs tab

Available when the DSTs option is selected on the Tests tab

Cores tab

Controls how cores are displayed on the cross section

PdCum tab

Controls how production cums are displayed on the cross section

Perfs tab

Controls how perfs are displayed on the cross section

FootNotes tab

Plots the test text as a footnote
