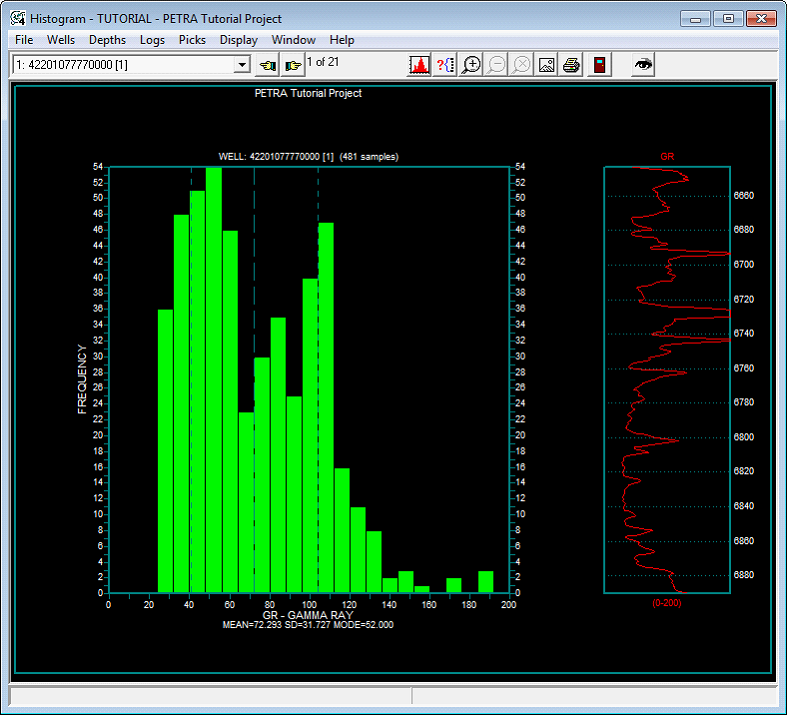

The Histogram module displays histograms for selected log curves. "Picks" can be digitized from the display and stored in the Zone database. Histogram picks are typically used for log normalization.
To open the Histogram module:
·Main module: Tools > Log Histogram
· Click the Histogram button on the Main module toolbar
Getting started
Selecting Wells
Selecting a Log Curve
Advanced tools
Creating "Picks"
Basic shortcuts and key definitions
|
PageUp
|
Display previous well
|
|
PageDn
|
Display next well
|
|
Display>CrossHair Cursor
|
Select the Display menu to toggle the large histogram cross hair. The histogram crosshair follows the mouse cursor inside the histogram chart. The cross hair value is echoed in the log curve box.
|
|
