Log Correlation Module

The Log Correlation Tool is used to correlate formation tops, unassigned tops/faults, and pay intervals. This tool can display both raster and digital logs. For a more comprehensive set of options, the Cross Section Module provides more advanced options beyond top picking. As another alternative, the Slip Log Module displays and pick tops on up to four horizontal raster logs.

To open the Log Correlation Tool:

Main module: Tools>Log Correlation
Click the Log Correlation button on the Main module toolbar

Getting Started

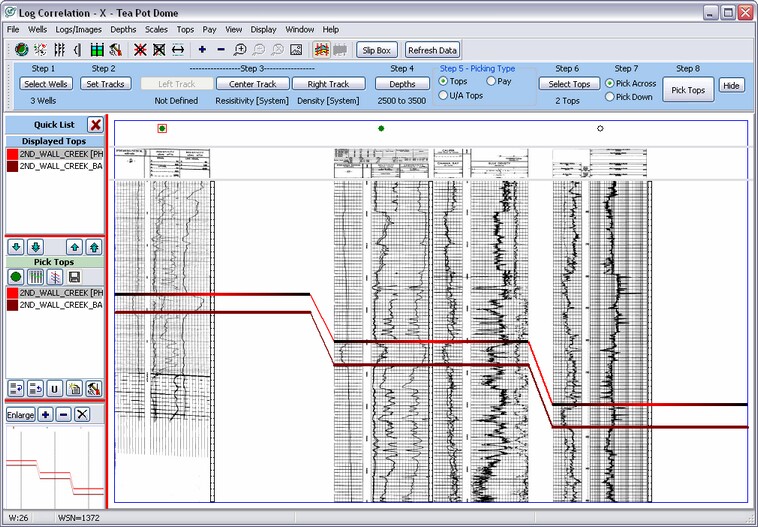

The guide at the top of the screen shows the suggested workflow for using the Log Correlation Tool. You'll want to select a few wells, set the Log Types for each track, put raster logs inside those Log Types, set the depths, and finally select and pick tops and pay intervals. The Quick Guide on the top of the screen has a set of buttons that link directly to these tasks.

clip0271

Step 1 - Select Wells

Step 2 - Set Tracks

Step 3 - Set Left/Center/Right Track

Step 4 - Depths

Step 5 & 6 - Picking Type: Formation Tops, Unassigned Tops, Pay

Step 7 (Formation Tops Only) - Set Pay Style

Step 8 (Formation Tops Only) Pick Tops & Step 7 (Unassigned Tops, or Pay)

Correlation Tools

Adding a Correlation Slip Box

Panning & Zooming with the Quick List MiniMap

Annotations and Data Posting

Well Symbols and Log Headers

Posting Well Data around the Well Symbols

Plotting Perfs

Basic Shortcuts and key definitions

Task	Shortcut Key(s)
Highlighting a well	Single click on the well's depth track with the left mouse button
Show the data for a selected well in the main module	Double-click on the well's depth track with the left mouse button
Terminating interactive process such as screen drawing or zooming	ESC
During screen drawing, skip to next graphic element	Space Bar
Drop the last point picked while drawing an overlay line	Delete
Drop the last well picked while picking wells for a cross-section	Delete
