Advanced Transforms

Compute > From Logs > Advanced Log Transformations

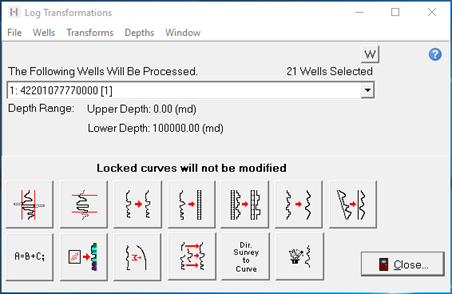

The Log Transformations Module performs a variety of calculations on digital log data.  These calculations range from relatively simple spike clipping and curve splicing to generating brand new curves and complex petrophysical modeling.  Though many of these tools exist in an abbreviated form in the Log Curve previewer, the tools in the Log Transformations Module can operate on multiple wells at once and with easier control over depth ranges.

Selecting Wells

Select the current well from main by clicking . Additional well selection options are available from the dialogs Wells menu that include:

• Current Well From Main
• All Wells
• By Data Criteria Selects wells based on a set of nested criteria including well header information, logs, or zone data.  “
• Wells from Main Selects all wells currently selected in the Main Module.

The drop down list displays the selected wells.
